Our ceramics

We propose a broad range of ceramic parts for furnace or oven manufacturing.

These are generally used as support elements for resistances, or as insulation elements, for temperatures of up to 1300 °C.

Ceramic tubes

  • Alumina (Al2O3) content: 70 to 75% (Mullite type C 530 / porous)
  • Numerous standard diameters available: from 16×10 mm to 75×60 mm
  • Max. length of 2 to 3 m depending on diameter, cutting on request
  • Also available in thimble version for probes
  • Contact us for other diameters, or greater lengths
  • Other grades by request:
    • Alumina type C 799: 99.7% Al2O3 / impermeable
    • Mullite type C610: 60% Al2O3 / impermeable

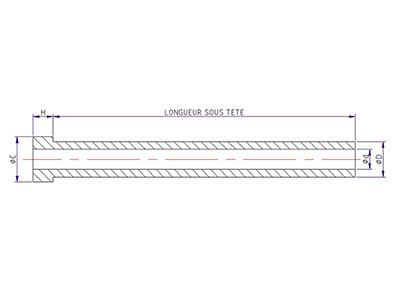

Ceramic tubes with ring

  • Alumina (Al2O3) content: 70 to 75%
  • Max. length: 300 mm under head

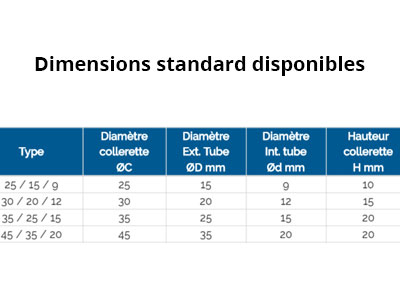

  • Numerous standard sizes available (see table)
  • Other sizes to order: by casting for series parts, or by sealing of a ring onto ceramic tube.

Some examples of ceramic tubes with ring

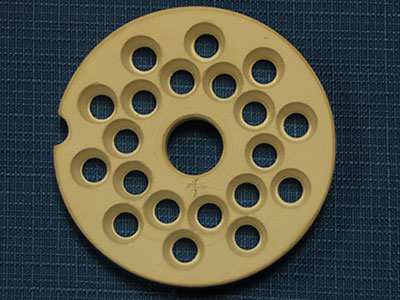

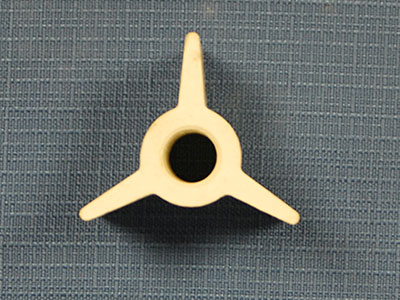

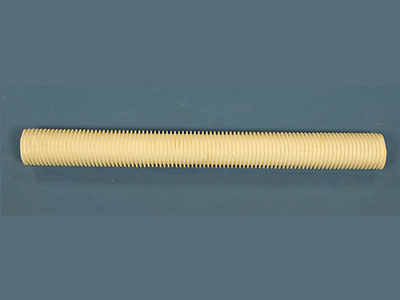

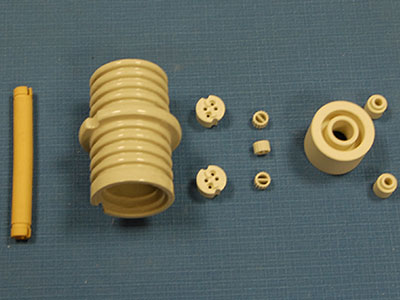

Examples of shaped ceramic parts

Shaped ceramic parts

We can create various shaped ceramic parts based on models or drawings, individually or in large production runs.

They are created by pressing or casting.

Alumina (Al2O3) content is of circa 75% for use up to 1300 °C.
